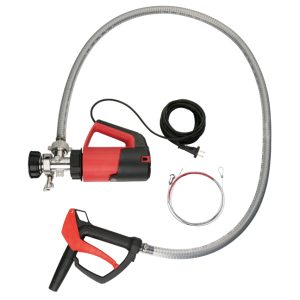

Pump Kit MINIFLUX
The pump-kit MINIFLUX is designed for emptying IBCs via their floor-level outlet. Designed as an alternative to a vertical pump, the MINIFLUX can be used when an IBC is not accessible from the top. It is suitable for applications when gravity draining via the outlet tap is insufficient e.g. rapid dispensing or transfer to another container in a higher location. Power can ideally be provided by a commutator or compressed air motor.
- Flow rate: max. 60 l/min
- Delivery head: max. 9 mwc
- Viscosity: min. 1 mPas - max. 1000 mPas
- Outer tube diameter: max. 41 mm
- Materials outer tube: Stainless steel
- Media / Fluids: Highly flammable media, Solvents, Petroleum products, Aqueous salt solutions
- Seal: with mechanical seal
- Container: 1000 l IBC, Container with floor drain
- For pumping out of IBCs directly from the outlet (with standard S60 x 6 thread)
- Simple connection of the pump to the outlet by union nut
- Compact design
- Can be dismantled into two parts via clamp
- Low overall weight of 1.2 kg
- No need to mount pump to top of container
- Does not require access to the container from above
- Ideally combined with commutator motor or compressed-air motor
- Low concentrated acids and lyes
- Aqueous solutions
- Solvents
- Highly flammable liquids
- Mineral oil products
- Base materials for the cleaning agent production
- Diverse raw materials for the cosmetics production
Disclaimer: Dependent on the suitability of pump materials selection for the fluid being transferred.
