JUNIORFLUX F 314

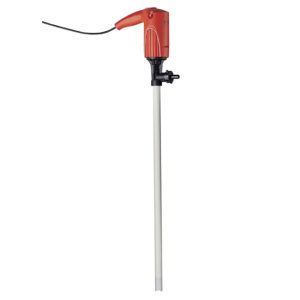

The small sealless drum pump JUNIORFLUX F 314 with fixed commutator motor is especially suitable for pumping comparatively small quantities out of containers such as canisters or drums of up to 200 litres. The small outer tube diameter allows pumping even out of narrow openings.

flux
JUNIORFLUX F 314
  • Flow rate: min. 27 l/min1 - max. 57 l/min1
  • Delivery head: max. 8,5 mwc1
  • Viscosity: min. 1 mPas - max. 250 mPas1
  • Outer tube diameter: min. 25 mm2 - max. 32 mm2
  • Immersion length: 500, 700, 1000
  • Materials outer tube: Polypropylene, Polyvinylidene fluoride, Stainless steel
  • Media / Fluids: Acids, Alkalis, Aqueous salt solutions
  • Seal: sealless
  • Container: 200 l drums, Small containers, Hobbocks
  • Suitable for transferring smaller quantities
  • Can pump out of narrow-necked containers
  • Minimal force required to change drums
  • With mains connection - enables very long operating times
  • High operational safety due to overload cut-out switch
  • Easy single-hand operation
  • Hand nozzle always quickly at hand due to holding hook
  • Low storage space required
  • Acids and alkalis
  • Liquid fertilizers
  • Cleaning solutions
  • Water
  • Concentrated nitric acid
  • Sulphuric acid
  • Acetic acid
Flyer JUNIORFLUX COMBIFLUX Technical Data Sheet

JUNIORFLUX F 314

motor F 310, 230 V, 50 Hz
In stainless steel (316Ti/316L), sealless, immersion length: 700 mm thread on outlL G 3/4 A, with motor 230V, 50-60Hz, 230W, IP24
FLU10-31421007
Regular Price: $3,600.30
Sale Price: $2,160.40

JUNIORFLUX F 314

motor F 310, 230 V, 50 Hz
pump in stainless steel (316Ti/316L) sealless version discharge connection: G 3/4 A outer tube diameter: 28 mm immersion lenght:1000 mm with motor 230V, 50-60Hz, 230W, IP24 with overload cut-out switch, 2-stage switch, 5m power supply cable with 2-pole plug with integral clip to suspend the pump with hook on pump outlet for fixing a hand tap
FLU10-31421010
Regular Price: $3,705.90
Sale Price: $2,224.20

JUNIORFLUX F 314

motor F 310, 230 V, 50-60 Hz
230 watt, IP 24 double insulated, protection class II, with overcurrent circuit breaker, 2-step on/off switch, 5 m connection cable and safety plug, Pump made of polypropylene in sealless design Outer diameter: 32 mm Immersion depth: 1000 mm With integrated holder for hanging the pump of the pump and fastening hooks for a nozzle on the outlet
FLU10-31442010
Regular Price: $2,502.50
Sale Price: $1,501.50

JUNIORFLUX F 314

motor F 310, 230 V, 50-60 Hz
230 watt, IP 24 double insulated, protection class II, with overcurrent circuit breaker, 2-step on/off switch, 5 m connection cable and safety plug, Pump made of polypropylene in sealless design Outer diameter: 50 mm Immersion depth: 500 mm With integrated holder for hanging the pump of the pump and fastening hooks for a nozzle on the outlet
FLU10-31461005
Regular Price: $3,066.80
Sale Price: $1,840.30

JUNIORFLUX F 314

motor F 310, 230 V, 50-60 Hz
230 Watt, IP 24 double insulated, protection class II, with overload cut-out switch, 2-stage switch, 5 m power supply cable and safety plug pump in polyvinylidene fluoride (PVDF) in sealless version outlet G 1 A outer diameter: 25 mm immersion length: 700 mm with integral clip to suspend the pump with mounting hook for fixing a nozzle at the outlet
FLU10-31461007
Regular Price: $3,137.20
Sale Price: $1,883.20

JUNIORFLUX F 314

motor F 310, 230 V, 50-60 Hz
230 watt, IP 24 5 m connection cable and safety plug, Pump made of polypropylene in sealless design
FLU10-31442005
Regular Price: $2,316.60
Sale Price: $1,390.40

JUNIORFLUX F 314

motor F 310, 230 V, 50-60 Hz
230 watt, IP 24 double insulated, protection class II, with overcurrent circuit breaker, 2-step on/off switch, 5 m connection cable and safety plug, Pump made of polypropylene in sealless design Outer diameter: 32 mm Immersion depth: 700 mm With integrated holder for hanging the pump of the pump and fastening hooks for a nozzle on the outlet
FLU10-31442007
Regular Price: $2,369.40
Sale Price: $1,422.30

JUNIORFLUX F 314

motor F 310, 230 V, 50-60 Hz
230 Watt, IP24 double insulated, protection class II, with overload cut-out switch, 2-stage switch, 5m power supply cable with 2-pole plug pump in Polypropylene (PP) in sealless version outer tube diamLer: 25 mm immersion length: 1000 mm with integral clip to suspend the pump with hook on pump outlL for fixing a hand tap
FLU10-31441010
Regular Price: $2,445.30
Sale Price: $1,467.40

JUNIORFLUX F 314

motor F 310, 230 V, 50-60 Hz
230 Watt, IP24 double insulated, protection class II, with overload cut-out switch, 2-stage switch, 5m power supply cable with 2-pole plug pump in Polypropylene (PP) in sealless version outer tube diamLer: 25 mm immersion length: 700 mm with integral clip to suspend the pump with hook on pump outlL for fixing a hand tap
FLU10-31441007
Regular Price: $2,312.20
Sale Price: $1,388.20

JUNIORFLUX F 314

motor F 310, 230 V, 50-60 Hz
230 Watt, IP24 double insulated, protection class II, with overload cut-out switch, 2-stage switch, 5m power supply cable with 2-pole plug pump in Polypropylene (PP) in sealless version outer tube diamLer: 25 mm immersion length: 500 mm with integral clip to suspend the pump with hook on pump outlL for fixing a hand tap
FLU10-31441005
Regular Price: $2,246.20
Sale Price: $1,348.60
Disclaimer: Dependent on the suitability of pump materials selection for the fluid being transferred.
