JUNIORFLUX

Pre-assembled progressive cavity pump kit featuring the VISCOPOWER F 570 progressive cavity pump and planetary gear, designed for food and pharmaceutical applications. Suitable for pumping low to medium-viscosity media up to 25,000 mPas from 200-litre drums and IBCs. This pump is specifically engineered to meet the stringent requirements of the food, cosmetic, and pharmaceutical industries. It operates with minimal turbulence, at a constant pressure, and ensures smooth, pulsation-free pumping.
The kit includes:

VISCOPOWER F 570 progressive cavity pump in 1000 mm or 1200 mm length
Commutator motor F 458-1
Discharge spout
Hinged clamp with seal
Compression gland

Flow rate: max. 30 l/min
Delivery head: max. 50 mwc
Viscosity: min. 1 mPas - max. 25000 mPas
Outer tube diameter: max. 53 mm
Immersion length: 1000, 1200
Materials outer tube: Stainless steel
Container: 1000 l IBC, 200 l drums

Positive displacement pump
Particularly suited to food applications
Perfect for viscous, free-flowing media that is sensitive to shearing
Smooth pumping of the liquid with very little turbulences
Intuitive and quick to dismantle and clean
Low pulsation in relation to the flow
Pump/shaft/worm can be dismantled
Lightweight and mobile use

Lip gloss
Ointments
Toothpaste
Molasses
Tomato paste
Juice concentrates

Flux 2024_04_Product catalogue Kits and Junior - Combi 20241210.pdf
FP314-S-28+FEM-3070 - Dimensional Drawings.pdf
FP314-S+FBM-B-3100_- Dimensional Drawings.pdf
FP314-PP-PVDF+FEM-3070 - Dimensional Drawings.pdf
FP314-PP_PVDF+FBM-B_3100 - Dimensional Drawings.pdf

JUNIORFLUX

F 314-32/25-1000 with motor

For urea solution/AdBlue® Consisting of: Motor F 310, 230 V, 50-60 Hz, 230 Watt, IP 24 Pump F 314 PP/S-32/25-1000 sealless version material polypropylene shaft in stainless steel immersion length 1000 mm PVC Hose DN 19, 2 m with hand nozzle PP AdBlue®,seal FKM outlet nozzle Ø 19 AdBlue® is a registered trademark of: Verband der Automobilindustrie e. V. (VDA)

FLU10-31444ZV2

Regular Price: $3,207.60
Sale Price: $1,925.00

JUNIORFLUX

F 314 PP-25/19-700 with motor

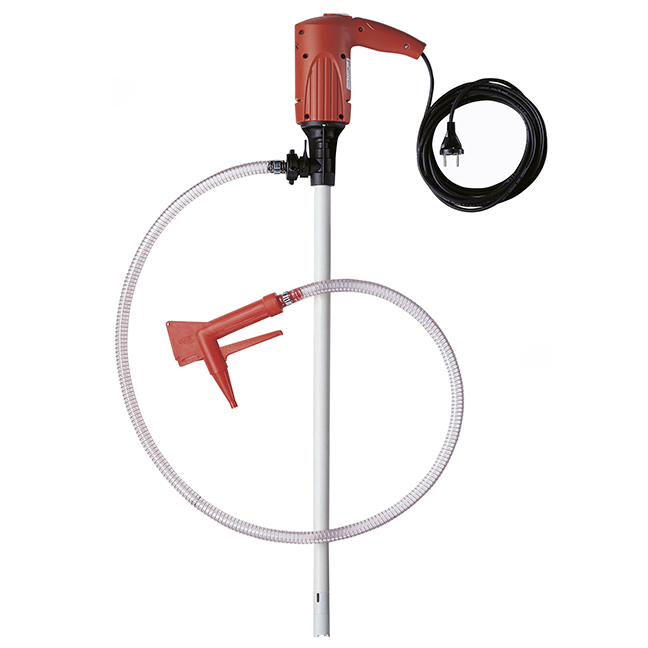

Pump F 314 PP-25/19-700 sealless version Material polypropylene outer Ø 25 mm immersion length 700 mm commutator motor F 310 230 V, 50-60 Hz, 230 Watt, IP 24 PVC hose DN 13, 1,5 m with hand nozzle PP, seal FKM

Regular Price: $2,706.00
Sale Price: $1,623.60

JUNIORFLUX

F 314 PP-25/19-1000 with motor

Pump F 314 PP-25/19-1000 sealless version Material polypropylene outer Ø 25 mm immersion length 1000 mm commutator motor F 310 230 V, 50-60 Hz, 230 Watt, IP 24 PVC hose DN 13, 1,5 m with hand nozzle PP, seal FKM

FLU10-31443010

Regular Price: $2,786.30
Sale Price: $1,672.00

JUNIORFLUX

F 314 PP-32/25-1000 with motor

Pump F 314 PP-32/25-1000 sealless version Material polypropylene outer Ø 25 mm immersion length 1000 mm commutator motor F 310 230 V, 50-60 Hz, 230 Watt, IP 24 PVC hose DN 19, 1,5 m with hand nozzle PP, seal FKM

FLU10-31444010

Regular Price: $2,847.90
Sale Price: $1,709.40

JUNIORFLUX

FP 314-32/25 & FBM-B 3100

Consisting of: Battery motor FBM-B 3100 18 V/2500 mA, IP 44 with charger 220-240 V, 50-60 Hz, Pump COMBIFLUX FP 314 PP/S-32/25 sealless version material polypropylene shaft in stainless steel immersion length 1000 mm PVC Hose DN 19, 2 m long with hand nozzle PP AdBlue, seal FKM outlL D=19 AdBlue® is a registered trademark of: Verband der Automobilindustrie e. V. (VDA)

FLU10-31449ZV2

Regular Price: $4,546.30
Sale Price: $2,728.00

Disclaimer: Dependent on the suitability of pump materials selection for the fluid being transferred.
