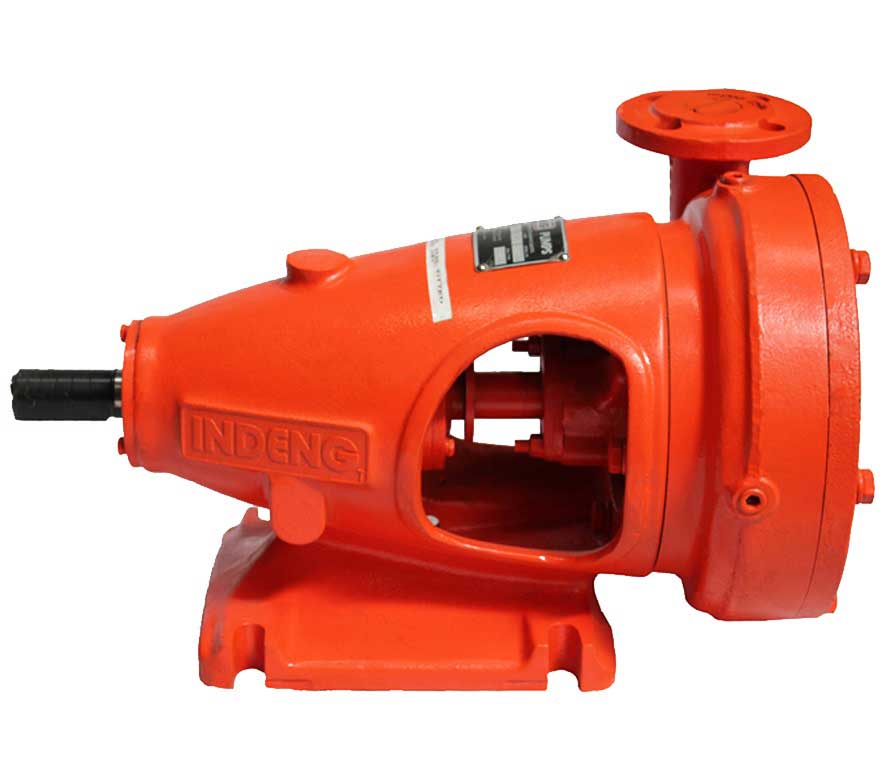

Indeng Monoflo VRC Series Pumps

The Indeng Monoflo is a reliable and efficient single-stage end-suction centrifugal pump. Its simple construction ensures ease of installation and maintenance with all parts manufactured to close tolerances to ensure interchangeability.

Features

  • CASING – Volute type of robust construction provides high efficiency. A deep stuffing box is incorporated and internally sealed to prevent the ingress of air; mechanical seal is standard and gland packing is optional. The option of different types of hard faced mechanical seals may also be fitted. The delivery branch can be rotated to give any one of eight different positions to enable the most suitable pipework layout to be used.
  • IMPELLER – Double shrouded and secured to the shaft by locknut and key. On the large pump sizes, balancing holes are utilised to minimise hydraulic thrust.
  • SHAFT – Accurately machined from a high quality stainless steel and designed to operate without vibration. A renewable shaft sleeve is provided as standard on all larger pumps (111,112,114 frame sizes).
  • BEARINGS – Close tolerance bearings provide long life and are grease sealed to keep routine maintenance to a minimum.
  • PEDESTAL – Cast iron construction. This can be modified to take double row bearings which can also be oil filled.

Applications

  • Industrial
  • Municipal
  • Agricultural

Dimensions (mm)

Open larger

Part Number  Discharge Suction Casing/Impeller Material Seal Type Frame
VRC1.25X1.5A43GP 1 1/4" 1 1/2" Cast iron Gland packed 110
VRC1.25X1.5A43MS 1 1/4" 1 1/2" Cast iron Mechanical seal 110
VRC1X1.5A43GP 1" 1 1/2" Cast iron Gland packed 110
VRC1X1.5A43MS 1" 1 1/2" Cast iron Mechanical seal 110
VRC1.5X2.5A43GP 1 1/2" 2 1/2" Cast iron Gland packed 111
VRC1.5X2.5A43MS 1 1/2" 2 1/2" Cast iron Mechanical seal 111
VRC2X3A43GP 2" 3" Cast iron Gland packed 111
VRC2X3A43MS 2" 3" Cast iron Mechanical seal 111
VRC3X3A43GP 3" 3" Cast iron Gland packed 112
VRC3X3A43MS 3" 3" Cast iron Mechanical seal 112
VRC4X4A43GP 4" 4" Cast iron Gland packed 112
VRC4X4A43MS 4" 4" Cast iron Mechanical seal 112
* Other matericals available on request.

VRC1X1.5A43MS
25mm x 40mm
Regular Price: $6,784.80
VRC1.25X1.5A43MS
32mm x 40mm
Regular Price: $7,162.65
VRC1.5X2.5A43MS
40mm x 65mm
Regular Price: $8,990.03
VRC2X3A43MS
50mm x 80mm
Regular Price: $9,528.75
VRC3X3A43MS
80mm x 80mm
Regular Price: $11,841.23
VRC4X4A43MS
100mm x 100mm
Regular Price: $12,158.85
