Hiblow HP Linear Diaphragm Pumps

Hiblow HP Linear air pumps all have low power consumption, quiet operation, low vibration, low pulsation, long life, and are easy to service. Hiblow HP Linear Diaphragm Pumps can deliver between 20-200 litres a minute air volume.

Features

  • Durability – The vibrating part consists of an actuating rod supported by two special synthetic rubber diaphragms which vibrates laterally and this allows long-term continuous operation
  • No lubrication – There is no sliding portion between moving parts so that no lubrication is required and the exhausted air is always clean
  • High efficiency – Owing to the electromagnetic vibration construction which eliminates sliding parts, Hiblow pump realises lower power consumption and high performance
  • Compact and powerful – Hiblow air pumps employs perfectly-balanced vibration mechanism using two electromagnets, one in the front and the other in the rear. This mechanism allows compact size and powerful device
  • Low noise – Soundproofing construction from the viewpoint of air circuit and vibration is the key factor in the design of an air pump and the Hiblow pump has an exceptionally quiet sound level
  • Smooth air flow – Because the exhaust air volume is very constant and there is less pulsation, Hiblow pump is suitable for the application which requires consistent air pressure and supply
  • Simple maintenance – Hiblow pumps can be used for longer periods with out requiring maintenance, however, replacement of parts can easily be done by modular type of parts in case that a diaphragm might be broken

Applications

  • Fish breeding equipment (oxygen supply)
  • Low frequency therapeutic equipment and other medical & scientific apparatus
  • Septic tank (biological contact aeration)
  • Bubble bath (air bubble injection)
  • Small capacity compressor

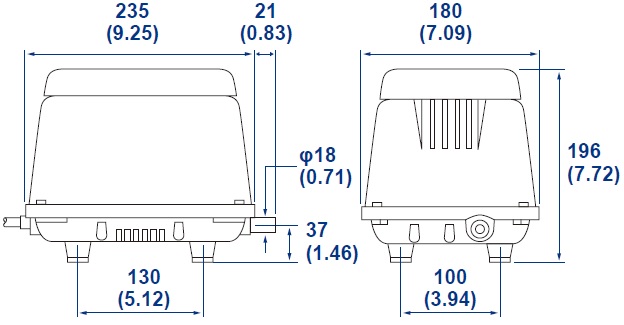

HIB-HP20 mm (inch) HP-20 dimensions HIB-HP40 mm (inch) HP-40 dimensions HIB-HP60 and HIB-XP80 mm (inch) HP-60&80 dimensions HIB-HP100LL and HIB-HP120LL mm (inch) HP-100LL&120LL dimensions HIB-HP150 and HIB-HP200 mm (inch) HP-150&200 dimensions
HIB-HP20 HIB-HP40 HIB-HP60 HIB-HP80 HIB-HP100LL HIB-HP120LL HIB-HP150 HIB-HP200
Rated Voltage V AC100 / 110 - 120 / 220 - 240 AC100 / 110 - 120 / 220 - 240 AC100 / 110 - 120 / 220 - 240 AC100 / 110 - 120 / 220 - 240
Power Supply Frequency Hz 50 60 50 60 50 60 50 60 60 60 50 60 50 60
Rated Loading Pressure kPa 9.8 12.8 14.7 14.7 17.7 20
Airflow Volume L/min 18 20 40 60 80 100 120 150 200
Power Consumption W 17 38 51 71 75 100 125 155 210 250
Noise Level dBA 31 32 35 36 42 45 45 47 46 48
Weight kg 3.2 5.7 7 7 9 9 9 9
HP-20 curvesHP-40 curves HP-60 curvesHP-80 curves HP-100LL curvesHP-120LL curves HP-150 curvesHP-200 curves

Hiblow HP Linear Diaphragm Pumps - HIBHP20

20L/min Airflow Volume
HIB-HP20
Regular Price: $402.60
Sale Price: $281.82

Hiblow HP Linear Diaphragm Pumps - HIBHP40

40L/min Airflow Volume
HIB-HP40
Regular Price: $462.00
Sale Price: $323.40

Hiblow HP Linear Diaphragm Pumps - HIBHP60

60L/min Airflow Volume
HIB-HP60
Regular Price: $550.00
Sale Price: $385.00

Hiblow HP Linear Diaphragm Pumps - HIBHP80

80L/min Airflow Volume
HIB-HP80
Regular Price: $583.00
Sale Price: $408.10

Hiblow HP Linear Diaphragm Pumps - HIBHP100LL

100L/min Airflow Volume
HIB-HP100LL
Regular Price: $825.00
Sale Price: $577.50

Hiblow HP Linear Diaphragm Pumps - HIB-HP120

120L/min Airflow Volume
HIB-HP120
Regular Price: $891.00

Hiblow HP Linear Diaphragm Pumps - HIBHP150

150L/min Airflow Volume
HIB-HP150
Regular Price: $1,210.00
Sale Price: $847.00

Hiblow HP Linear Diaphragm Pumps - HIBHP200

200L/min Airflow Volume
HIB--HP200
Regular Price: $1,320.00
Sale Price: $924.00
Disclaimer: Dependent on the suitability of pump materials selection for the fluid being transferred.
