COMBIFLUX FP 314

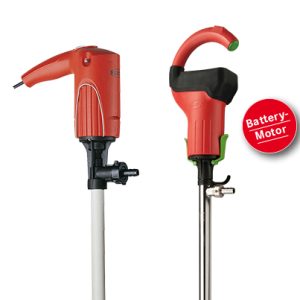

The small battery drum pump COMBIFLUX FP 314 is suitable for pumping small quantities from containers such as cans or up to 200 litre drums. The IP 44 is protected against splash water and therefore ideally suited for outdoor use. The small diameter of the outer tube allows pumping even out of narrow openings. The sealless COMBIFLUX FP 314 is designed on a modular basis and can either be operated with the commutator motor FEM 3070 or the battery motor FBM-B 3100. This way several pumps can be operated in series with one motor. The intelligent cooling concept of the motor with double-walled housing ensures optimum air circulation and protects against the penetration of aggressive vapors.

flux
COMBIFLUX FP 314
  • Flow rate: min. 12 l/min1 - max. 60 l/min1
  • Delivery head: max. 8,5 mwc1
  • Viscosity: min. 1 mPas - max. 250 mPas1
  • Outer tube diameter: min. 25 mm2 - max. 32 mm2
  • Immersion length: 500, 700, 1000, 1200
  • Materials outer tube: Polypropylene, Polyvinylidene fluoride, Stainless steel
  • Media / Fluids: Acids, Alkalis, Aqueous salt solutions
  • Seal: sealless
  • Container: 200 l drums, Small containers, Hobbocks
  • Can transfer from narrow-necked and containers difficult to access
  • Minimal force required to change drums
  • Hand nozzle always quickly at hand due to holding hook
  • Low storage space required
  • Also for pumping out of IBCs
  • One battery charge is enough to empty 17 x 200 l drums or 3 IBCs
  • Short charging time for battery of less than 1 hour
  • Acids and alkalis
  • Liquid fertilizers
  • Cleaning solutions
  • Water
  • Concentrated nitric acid
  • Sulphuric acid
  • Acetic acid
Flyer JUNIORFLUX COMBIFLUX

COMBIFLUX FP 314

PVDF-25/19-500
In Polyvinylidene fluoride, sealless version, shaft in Hastelloy C, impellor in ETFE outer-Ø 25 mm, immersion length 500 mm, without motor
Regular Price: $1,862.30
Sale Price: $1,117.60

COMBIFLUX FP 314

PVDF-25/19-700
In Polyvinylidene fluoride, sealless version, shaft in Hastelloy C, impellor in LFE, outer-Ø 25 mm, immersion length 700 mm, without motor
Regular Price: $1,945.90
Sale Price: $1,168.20

COMBIFLUX FP 314

PVDF-25/19-1000
In Polyvinylidene fluoride, sealless version, shaft in Hastelloy C, impellor in LFE, outer-Ø 25 mm, immersion length 1000 mm, without motor
FLU10-31465910
Regular Price: $2,135.10
Sale Price: $1,281.50

COMBIFLUX FP 314

S-28/25-500
Sealless version in stainless steel (316Ti/316L), shaft in stainless steel 316 Ti impeller in ETFE connection thread G 3/4 A outer Ø 28 mm, immersion length 500 mm, without hose connection without motor
FLU10-31426905
Regular Price: $2,321.00
Sale Price: $1,392.60

COMBIFLUX FP 314

S-28/25-700
Sealless version in stainless steel (316Ti/316L), shaft in stainless steel G 3/4 A impeller in ETFE outer Ø 28 mm, immersion length 700 mm, without hose connection without motor
FLU10-31426907
Regular Price: $2,411.20
Sale Price: $1,447.60

COMBIFLUX FP 314

S-28/25-1000
sealless version in stainless steel (316Ti/316L), shaft in stainless steel 316 Ti connection thread G 3/4 A impeller in ETFE outer Ø 28 mm, immersion length 1000 mm, without hose connection without motor
FLU10-31426910
Regular Price: $2,505.80
Sale Price: $1,503.70

COMBIFLUX FP 314

S-28/25-1200
sealless version in stainless steel (316Ti/316L), shaft in stainless steel 316 Ti connection thread G 3/4 A impeller in ETFE outer Ø 28 mm, immersion length 1200 mm, without hose connection without motor
FLU10-31426912
Regular Price: $2,592.70
Sale Price: $1,556.50

COMBIFLUX FP 314

PP-32/25-1200
Sealless version, in polypropylene, shaft in Hastelloy C, connection thread G 1 A impeller in ETFE outer-Ø 32 mm, immersion length 1200 mm, without motor
FLU10-31446912
Regular Price: $1,362.90
Sale Price: $818.40

COMBIFLUX FP 314

PVDF-25/19-500
In Polyvinylidene fluoride, sealless version, shaft in Hastelloy C, impellor in ETFE outer-Ø 25 mm, immersion length 500 mm, without motor
FLU10-31465905
Regular Price: $1,862.30
Sale Price: $1,117.60

COMBIFLUX FP 314

PVDF-25/19-700
In Polyvinylidene fluoride, sealless version, shaft in Hastelloy C, impellor in LFE, outer-Ø 25 mm, immersion length 700 mm, without motor
FLU10-31465907
Regular Price: $1,945.90
Sale Price: $1,168.20

COMBIFLUX FP 314

PP-32/25-700
In polypropylene, sealless version,shaft in Hastelloy C, impeller in ETFE outer-Ø 32 mm, immersion length 700 mm, without motor
FLU10-31446907
Regular Price: $1,178.10
Sale Price: $707.30

COMBIFLUX FP 314

PP-32/25-1000
In polypropylene, sealless version, G1 male discharge connection shaft in Hastelloy C, impellor in ETFE, outer-Ø 32 mm, immersion length 1000 mm, without motor
FLU10-31446910
Regular Price: $1,316.70
Sale Price: $790.90

COMBIFLUX FP 314

PP-25/19-500
In polypropylene, sealless version,shaft in Hastelloy C, impeller in ETFE outer-Ø 25 mm, immersion length 500 mm, without motor
FLU10-31445905
Regular Price: $1,060.40
Sale Price: $636.90

COMBIFLUX FP 314

PP-25/19-700
In polypropylene, sealless version, shaft in Hastelloy C, impeller in ETFE, outer-Ø 25 mm immersion length 700 mm, without motor
FLU10-31445907
Regular Price: $1,116.50
Sale Price: $669.90

COMBIFLUX FP 314

PP-25/19-1000
In polypropylene, sealless version,shaft in Hastelloy C, impeller in ETFE outer-Ø 25 mm, immersion length 1000 mm, without motor
FLU10-31445910
Regular Price: $1,249.60
Sale Price: $750.20

COMBIFLUX FP 314

PP-32/25-500
In polypropylene, sealless version,shaft in Hastelloy C, impeller in ETFE outer-Ø 32 mm, immersion length 500 mm, without motor
FLU10-31446905
Regular Price: $1,120.90
Sale Price: $673.20
Disclaimer: Dependent on the suitability of pump materials selection for the fluid being transferred.
